With nearly 20 years of experience in the lamination industry, we have established ourselves as a specialist solventless lamination machine manufacturer. Our SINSTAR solventless laminators are designed to answer the challenges of cost effective and high quality laminates for the flexible packaging markets. These markets include food packaging, pharmaceutical packaging, medical packaging, consumer goods packaging and other industrial sectors needing laminated packaging films.

As our best-selling solventless lamination machines, SINSTAR solventless laminators are crafted in an assortment of models to meet customer's required layer structure of laminated film. Currently our SINSTAR solventless laminators are available in two-layer and three-layer lamination options.

Explore Our SINSTAR Two-Layer and Three-Layer Solventless Laminators

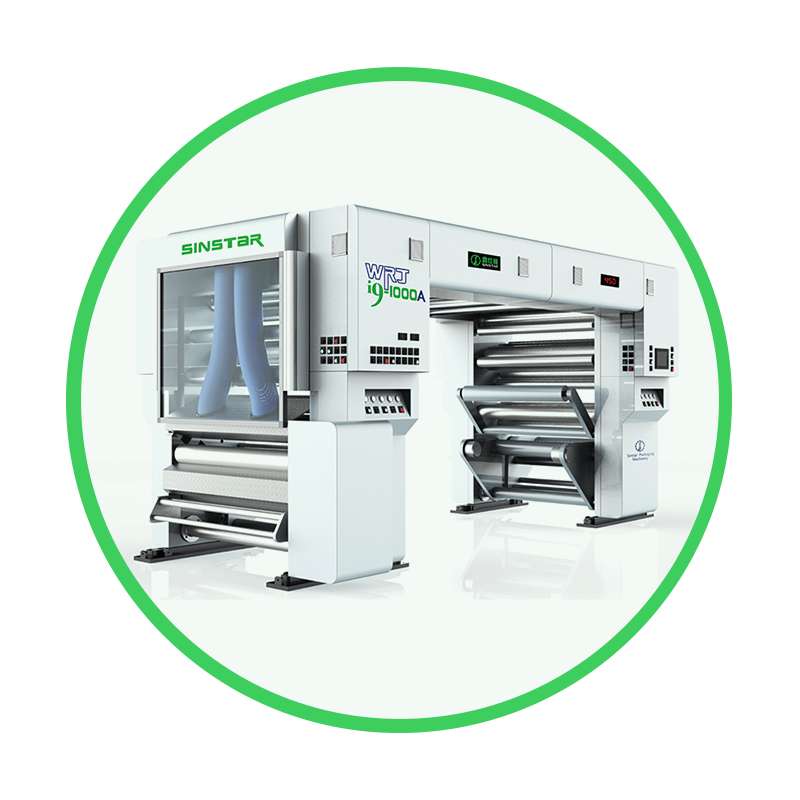

Solventless Laminator
WRJ i9-1300A

Single-station two-layer solventless laminator with simple operation

The solventless lamination machine is primarily designed for the production of flexible packaging by bonding two layers of flexible films with solventless adhesive.

Layer Number of Laminated Film
2 layers
Max. Lamination Width
1350mm
Max. Unwind Diameter
800 mm
Max. Rewind Diameter
800 mm
Max. Power
70 kW
Temperature Control
2
Adhesive Mixer
1 (WRJ5-2)

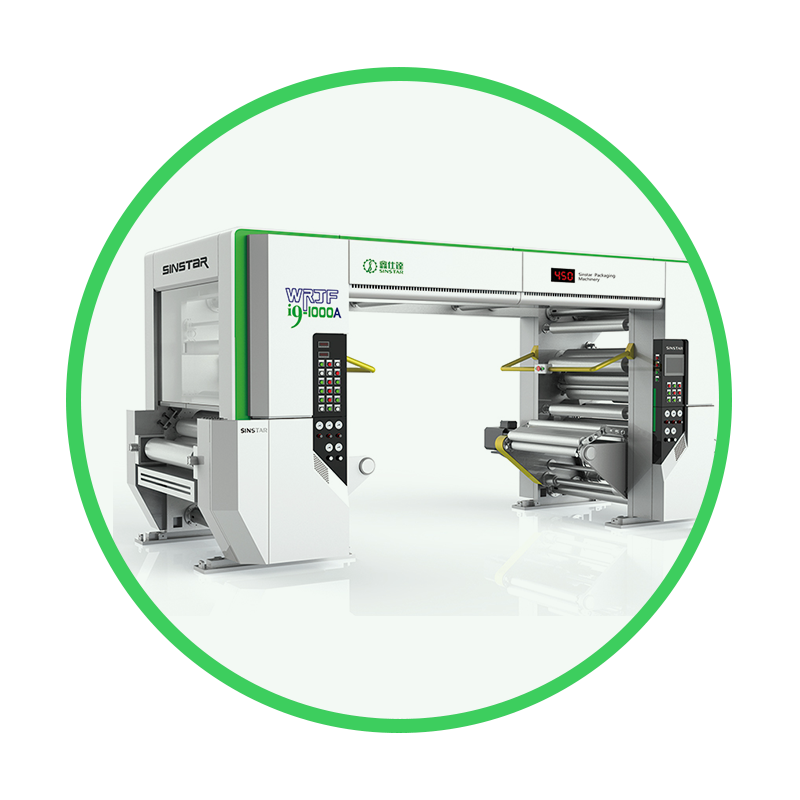

Solventless Laminator
WRJ Fi9-1300A

Single-station two-layer solventless laminator with less power consumption and lower cost

The solventless laminator provides the eco-friendly solution of solvent-free adhesive coating while ensuring precise coating weight consistency, thus serving as a popular choice for the manufacturers of flexible laminates that are suitable for product packaging.

Layer Number of Laminated Film
2 layers
Max. Lamination Width
1350mm
Max. Unwind Diameter
800 mm
Max. Rewind Diameter
800 mm
Max. Power
60 kW
Temperature Control
2
Adhesive Mixer
1 (WRJ4-2)
Weight
8800kg
Dimensions (L×W×H)
6000×3000×2550mm

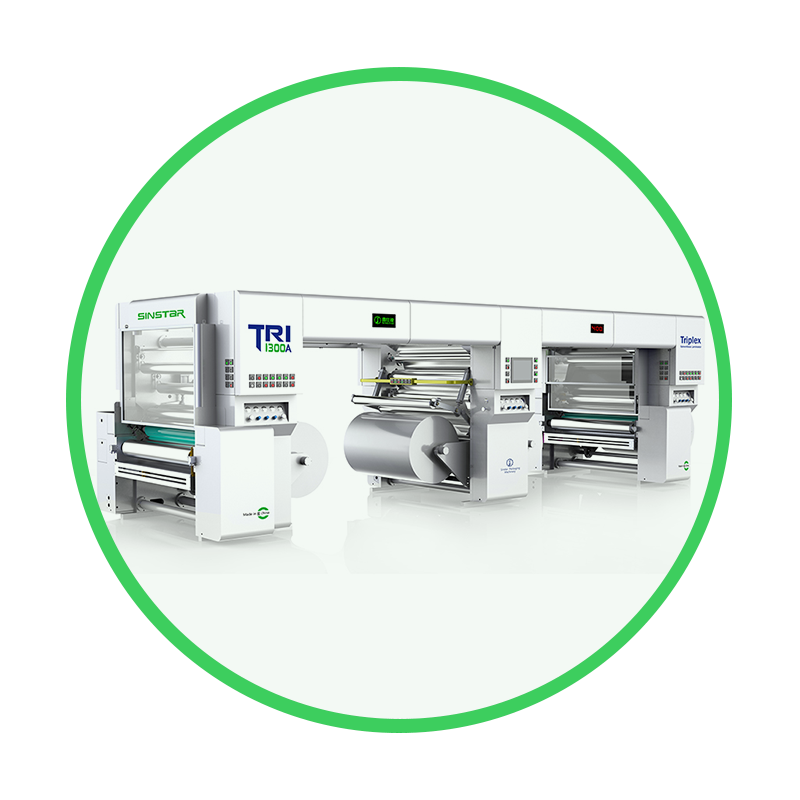

Solventless Laminator
TRI-1300A

Three-layer solventless laminator with shorter web path and no unwanted adhesive penetration

Our SINSTAR three-layer solventless lamination machine is mainly applied to produce flexible packaging laminates for the a multitude of market sectors including food, pharmaceuticals, personal care items, anti-static materials, insulation materials, building materials and decoration.

Layer Number of Laminated Film
3 layers
Max. Lamination Width
1350 mm
Max. Unwind/Rewind Diameter
800 mm
Temperature Control
5
Adhesive Mixer
2 (WRJ5-2)
Dimensions (L×W×H)
8000×2850×2400 + 300mm
FAQs

It is the most commonly used lamination equipment with a simple structure, it has only one lamination station.

Our SINSTAR solventless laminators are available in three models, which can achieve two-layer lamination and three-layer lamination applications. If you have individual requirements for multiple-layer lamination, please contact our experts.

Our solventless laminator is provided with adhesive mixer and temperature control as standard configuration. For other laminator accessories, please contact us.

Currently, we have service offices in various countries, including Russia, South Korea, Pakistan, Egypt, Philippines, Malaysia, Indonesia, Vietnam, Thailand and Myanmar to provide services including equipment installation and commissioning. If there is no local service office, we will arrange technical personnel to travel to your location for installation and provide commissioning guidance.

We provide operator training services and guidance on common problems of lamination equipment operation.

If you have any problems or need technical support during the use of lamination equipment, please contact us directly.
