OUTDRY Solventless Laminator

Ideal for breathable film manufacturing

The OUTDRY solventless laminator is primarily designed for producing waterproof and breathable films. The breathable films made by our laminators allow moisture to escape easily while preventing liquids from entering. This solventless laminating machine is suitable for manufacturing products such as protective clothing and baby diapers.
Breathable Film Solventless Lamination Machine
Request a Quote

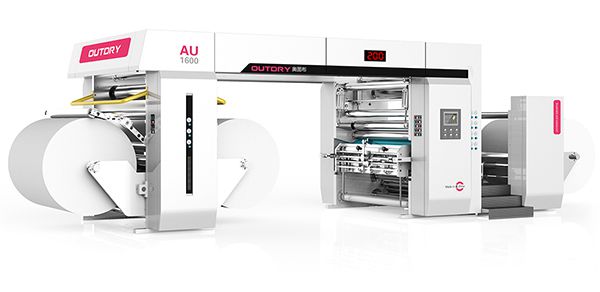

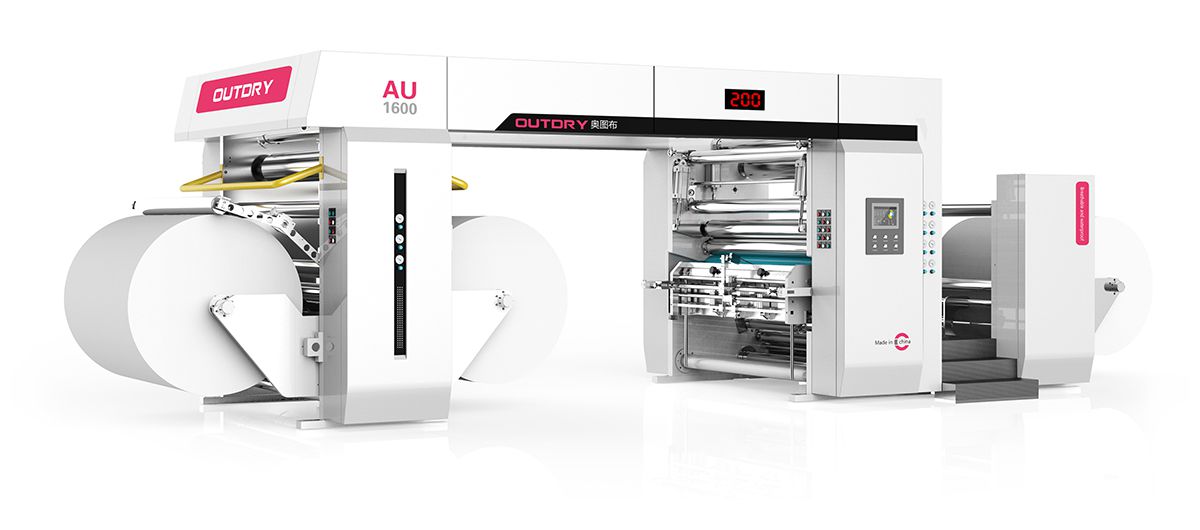

Breathable Film Solventless Lamination Machine AU-1600

Making films permeable to air and impervious to liquids

  • Layer Number of Laminated Film: 2 layers
  • Max. Lamination Width: 1650mm
  • Max. Unwind Diameter: 1200mm
  • Max. Rewind Diameter: 1200mm
  • Max. Power: 120kW
  • Weight: 8500kg
  • Dimensions (L×W×H): 8600×3150×2550mm
Application

Our OUTDRY solventless laminator is primarily used for producing breathable films. Targeted markets include:

  • Breathable packaging films for vegetables, fruits, and flowers.
  • Breathable films for medical dressings, non-woven protective clothing, sanitary napkins, diapers, and baby warmers.
  • Breathable films for packaging clothing and home goods.
Features
  • Adhesive dispensing method
  • Breathable and waterproof
  • Moisture curing of hot melt adhesive
  • Zero emission, environment friendly
  • Micro tension system
  • Large-diameter roll unwinding and rewinding
Applicable Structure
  • Nonwoven Fabric / Breathable PE Film
  • Paper / Breathable PE Film
  • Paper / Paper
  • Cloth / Cloth
  • Cloth / Plastic Film
Specifications
Equipment Name OUTDRY
Machine Model AU-1600 Breathable Film Solventless Lamination Machine
Layout Left side (facing machine): rewind unit, bottom layer unwind unit Middle: coating unit, lamination unit Right side (facing machine): surface layer unwind unit
Mechanical Speed 250m/min
Lamination Method Solventless Lamination
Lamination Speed 20-200m/ min (Depending on substrate, adhesive properties, blade angle, and roller lifespan, not exceeding the mechanical speed)
Lamination Width 500mm～1650mm (shaftless chucking)
Max. Unwind Diameter (surface layer) Ø1200mm (Core weight 350kg)
Max. Unwind Diameter (bottom layer) Ø1200mm (Core weight 350kg)
Max. Rewind Diameter Ø1200mm (Core weight 350kg)
Web Width 1650mm
Max. Paper Core Length 1650mm
Paper Roller Diameter 3 inches: 76mm (ID) × 96mm (OD)
Guide Roller Length 1750mm
Coating Weight To be determined g/m² (Depending on customer mesh depth, dot shape, and adhesive properties)
Layer Number of Laminated Film 2 layers
Temperature of Nip Pressure Roller Room temperature -- 90℃
Temperature of Steel Coating Roller Room temperature -- 150℃
Total Power Approximately 120 kW
Power Supply Three-phase five-wire 380V±5%, 50Hz
Clean Air Pressure 0.6Mpa
Machine Color Ivory White
Machine Weight Approximately 8500kg
Dimensions (L×W×H) 8600mm×3150mm×2550mm
FAQs

We have collaborated with Siemens and Festo from Germany to customize this solventless laminator.

  • Highly informatized operation and management.
  • Fast job changeover and non-stop operation with high production yield.
  • Utilizing solventless laminating technology, which is more environmentally friendly.

Our custom-designed laminator is primarily used in industries such as food packaging, personal care & cosmetics packaging, clothing etc., helping flexible packaging companies achieve large-scale production.

We offer lamination equipment commissioning and operator training services.

Yes, we support private label OEM services for our laminating equipment. Leveraging our existing solventless lamination technology advantages and nearly twenty years of experience, we reduce risks and lower the brand's investment costs, allowing them to focus on market expansion."
